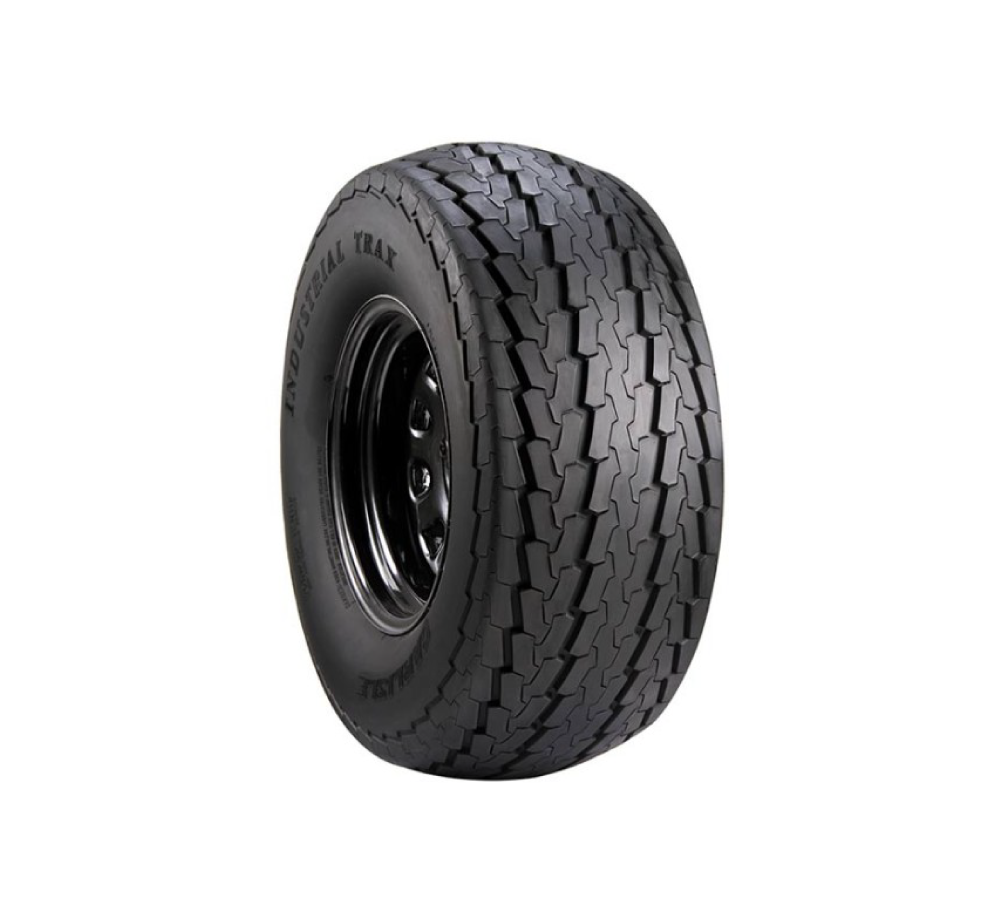

23X10.50-12 NHS 4 PR CARLISLE INDUSTRIAL TRAX 90A4 TL
Description
Designed for hard surface utility vehicle applications such as concession vehicles for golf courses.
Features
- Non-directional tread pattern for easy handling on hard surfaces.
- Primarily used for heavy-duty hard surface applications such as utility carts or concession carts.
Specification
Application
GRASS AND TURF
Size
23X10.50-12 NHS
Size Suffix
NON HIGHWAY SERVICE
Equivalent Size 1
270/50-12
Brand
CARLISLE
Pattern
INDUSTRIAL TRAX
Load/Speed Index
90A4
Ply Rating
4
TT/TL
TL
Construction
BIAS
Nominal Overall Diameter
23
Nominal Section Width
10.50
Rim
12
Recommended Rim
8.5
Section Width
264.20 mm
Overall Diameter
571.50 mm
Static Load Radius
256 mm
Rolling Circumference
1708 mm
Tread Depth
9.50 mm
Max Load (KG)/Speed (KM/H) 1
608/20
Inflation Pressure Psi
20
Inflation Pressure kPa
140
ECE 106
Yes
